CNC Tube and Profile Bending

Precise metal shaping ✔️Modern CNC technologies ✔️High accuracy and repeatability for industrial applications

CNC Tube and Profile Bending Technology

Precise CNC tube and profile bending represents a modern method of shaping metal materials.

It uses computer-controlled machines that ensure high precision and repeatability of the process.

This cold forming technology allows for creating complex shapes and bends that would be difficult to achieve manually.

CNC machines can work with various tube diameters and profile types, from small precise components to larger industrial parts.

$

Why Eurosvit

Our modern CNC machines and experienced team ensure precise bending of tubes and profiles from various materials including steel, stainless steel and aluminum.

We process diameters of 5-100 mm, with a radius up to 500 mm and wall thickness up to 5 mm.

CNC bending allows for 3D bending and various bend radii in sequence, creating complex shapes according to customer requirements.

Measuring the precision of a bent tube on a CNC machine at Eurosvit

Machinery Park

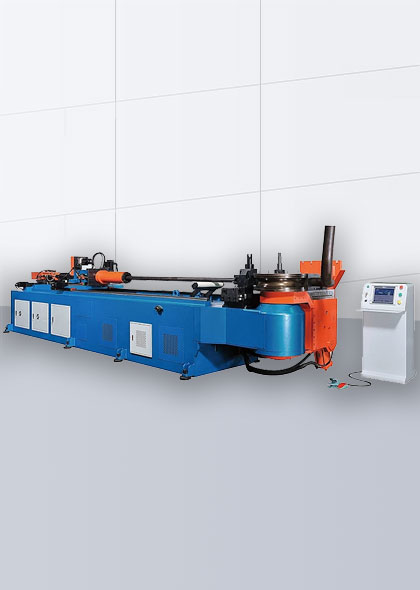

ShuzTung CNC 100

Max. bending capacity

100 x 5,0 mm

Max. bending radius

500 mm

Max. bending angle

190°

Max. feeding material length

6 000 mm

Bending accuracy

±0.05 °

Bending speed

35 °/sec

Feeding accuracy rack

±0.1 mm

Feeding speed

600 mm/sec

Turning accuracy

±0.1 °

Turning speed

100 °/sec

Machinery Park

Pedrazolli Bend Master 65

Max. bending capacity

65 x 3,2 mm

Max. bending radius

250 mm
